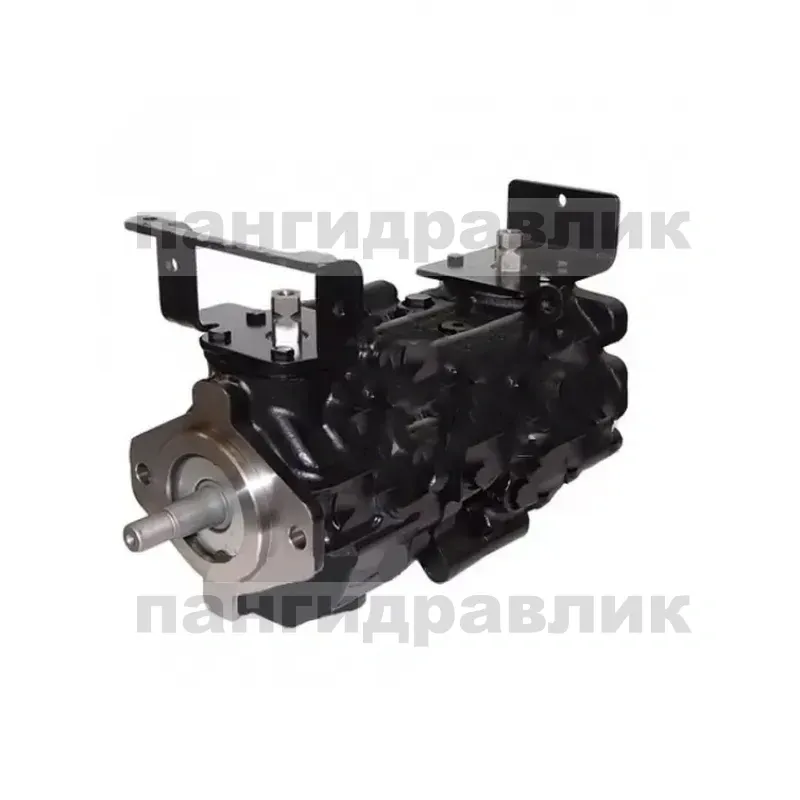

Гидравлический насос Bobcat 6681936 Sauer-Danfoss 4445098 (MPT-044D)
Статус
В наличии
Производитель
Sauer-Danfoss
Категория
Гидронасосы
Стоимость
По запросу
Нужен ремонт вашего агрегата?
Перейдите на страницу ремонта, чтобы оформить заявку в пару кликов.
Заказать ремонтЕсть вопросы? Напишите нам
Откроется чат с администратором из личного кабинета.
Характеристики
Характеристики не указаны.
Описание
Гидравлический насос Bobcat 6681936
Sauer-Danfoss 4445098
Danfoss MPT-044-D-C-C-S-M-BD-B-A-A-A-BJJ-DS-A-FF-B-C-A-A-BJJ-DS-A-FF-W-TGC-***
Danfoss MPT044DCCSMBDBAAABJJDSAFFBCAABJJDSAFFWTGC***
| 1 | PUMP,_x000D_ HYD TANDEM NLA - Model 4445066 - complete W/aluminum gear pump - standard_x000D_ flow - must use 6576196 bracket & 6706096 bracket from original pump -_x000D_ Order 6689135 pump & 6675660 gear pump or 6674692 | |
| 1 | 6674692 REM | PUMP, HYD TANDEM, W/O_x000D_ GEAR PUMP |
| 1 | PUMP NLA - complete W/_x000D_ cast iron gear pump - Model 4445098 - standard flow - must use brackets_x000D_ 6576196 & 6706096 from old pump - Order 6689135 Hydrostat & 6687867_x000D_ Gear Pump - Was 6681936 - A | |
| 1 | PUMP, HYD TANDEM NLA -_x000D_ Model 4445067 - complete W/aluminum gear pump - high flow - must use 6576196_x000D_ bracket & 6706096 bracket from original pump - Order 6689135 pump &_x000D_ 6675661 gear pump or 6674692REM | |
| 1 | 6674693 REM | PUMP, HYD TANDEM, W/O_x000D_ GEAR PUMP |
| 1 | PUMP, HYD 2-SPEED NLA_x000D_ - Model 4445099 - complete W/cast iron gear pump - high flow - must use_x000D_ 6576196 bracket & 6706096 bracket from original pump - Order 6689135 pump_x000D_ & 6687868 gear pump or 6674692RE | |
| 1 | 6677657 REM | PUMP, HYD 2-SPEED, W/O_x000D_ GEAR PUMP |
| 1 | 6689135 | HYDROSTAT W/O Gear_x000D_ Pump |
| 2 | 6657028 | O-RING |
| 6 | 6645086 | PLUG |
| 7 | 6657067 | COVER |
| 8 | 6650637 | BOLT Was 6650674 - A |
| 9 | 6518483 | WASHER |
| 10 | 6670685 | RELIEF VALVE 5000 PSI_x000D_ (345 bar) - Was 6689601 - A |
| 11 | 6669405 | CAP, END |
| 12 | 6650634 | GASKET |
| 13 | 6676148 | PLATE, VALVE |
| 14 | 6650636 | PIN |
| 20 | 6650630 | RETAINER |
| 21 | 6650629 | PIN |
| 22 | 6666338 | WASHER |
| 26 | 6675341 | GROUP, ROTARY Ref. 15_x000D_ - 25 |
| 27 | 6650627 | PLATE |
| 28 | 6685344 | SWASHPLATE W/threaded_x000D_ shaft hole - Was 6671513 - A |
| 31 | 6645080 | O-RING For Model_x000D_ 4445066, 4445098, 4445099 |
| 31 | 6660339 | GASKET For Model_x000D_ 4445067 |
| 32 | 6676146 | COUPLING |
| 33 | 669863 | RING, SNAP |
| 34 | 658128 | RING, SNAP |
| 35 | 654299 | BEARING |
| 36 | 6652018 | BOLT |
| 37 | 6669407 | SHAFT |
| 39 | 6650668 | BOLT |
| 40 | 6657068 | COVER |
| 41 | 6660814 | O-RING |
| 42 | 6669411 | BEARING |
| 43 | 6675342 | PIN |
| 44 | 6669403 | HOUSING |
| 45 | 6678226 | SEAL, OIL Was 6673881_x000D_ - A |
| 47 | 6650635 | BEARING |
| 50 | 6661481 | O-RING |
| 51 | 6671516 | KIT, SEAL See_x000D_ Illustration HYDROSTATIC PUMP/ B17765A Ref. 7, 9, 13, 34, 35, 42, 43, 45_x000D_ & 46 - Also Includes Ref. 2, 3, 12 & 41 on this Illustration |
