Гидравлический насос CAT 455-7978 Экскаватор-погрузчик Caterpillar 428F2

Гидравлический насос CAT 455-7978

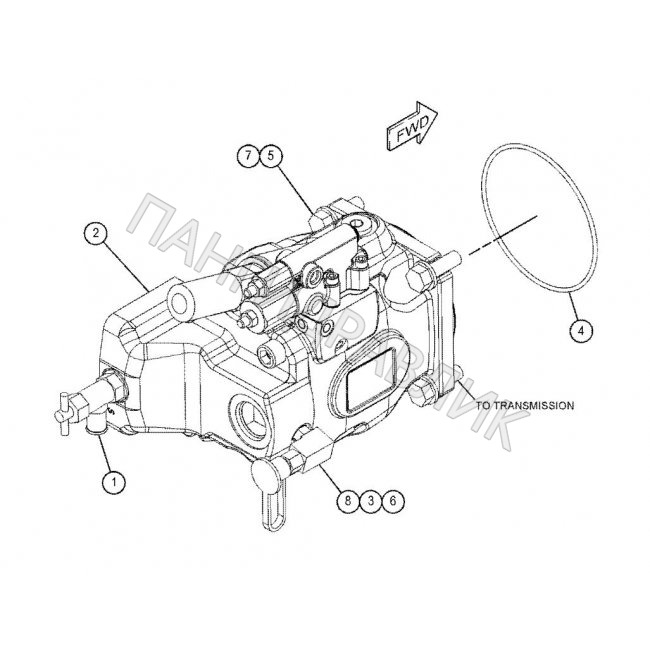

4557978 PUMP GP-PISTON S/N LYG1-UP PART OF 431-6730 PUMP & MTG GP-HYDRAULIC

Экскаватор-погрузчик Caterpillar 428F2

1. 6R-7943 SCREW (M5X0.8X15-MM)
2. 180-6213 RING-RETAINING
3. 258-0139 SEAL-SHAFT
4. 2M-9780 SEAL-O-RING
5. 386-6610 SPRING
6. 146-3493 PIN
7. 8T-2503 BOLT-SOCKET HEAD (M14X2X35-MM)
8. 168-3504 SEAL
9. 120-4394 PLUG-BREAK OFF
10. 190-6507 RING-STOP
11. 9W-2110 CUP-TAPERED ROLLER
12. 8J-0412 CUP-BEARING
13. 192-7470 SEAL-O-RING
14. 455-7981 SHAFT
15. 168-2203 SHIM-SHAFT (3-MM THK)
16. 386-6612 BEARING-CRADLE (RIGHT)
17. 386-6611 BEARING-CRADLE (LEFT)
18. 398-7457 VALVE GP-PUMP CONTROL (FLOW COMPENSATOR)
19. 379-5187 SPRING
20. 333-7840 STOP
21. 423-0079 VALVE GP-PUMP CONTROL (TORQUE LIMITING SPOOL)
22. 421-1060 ROTATING GP-PUMP
23. 279-2491 PLATE-PORT
24. 9S-8006 PLUG (7/8-14-THD)
25. 3P-1210 CONE-BEARING
26. 9W-2109 CONE-BEARING
