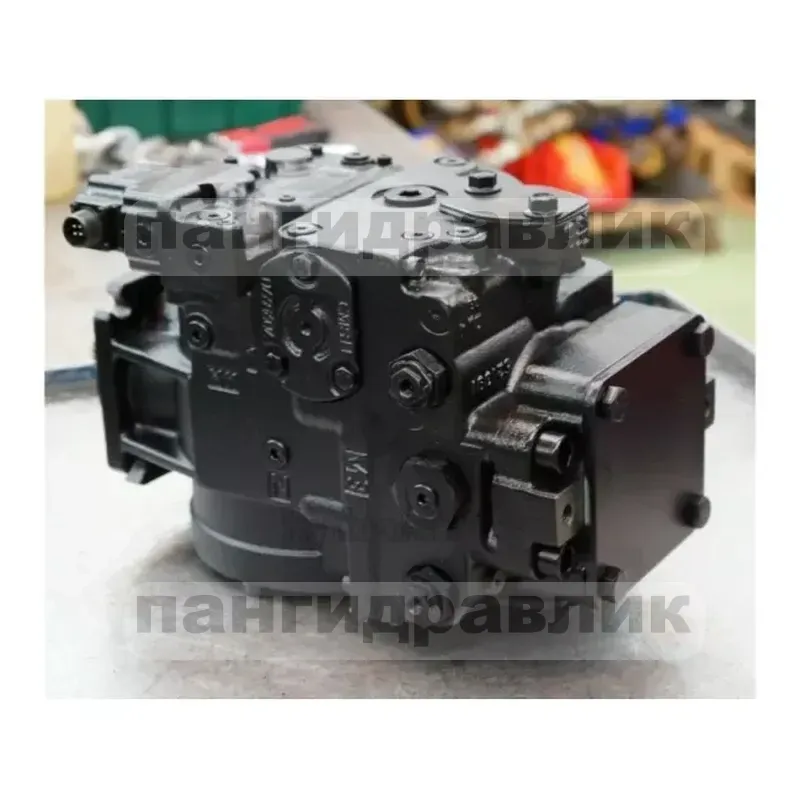

Гидравлический насос Danfoss 516064

Гидравлический насос Danfoss 516064

Danfoss 90-R-055-CA-5-NN-60-S-7-C6-C-00-EEG-42-42-32

Danfoss 90R055CA5NN60S7C6C00EEG

SERIES 90 Danfoss PUMP-VAR-DISPL CW 90PV055 Variable Displacement Pump

Right Hand [CW]

Cover plate without feedback link, no control

No auxiliary mounting pad / port-plate

60-Side Ports

S-suction filtration

7-no limiters, spec. servo cylinder at side 1 with hard spring (with NFPE-controls)

C6-splined shaft, 21 teeth, pitch  = 16 / 32

C-Charging nominal flow  =  14 cc / rev

33-Control Orifice Options / (EDC) inlet P 0.81

EEG-speedring, no sensor, CP30 +4,3° valve plate

42-High Pressure Setting A / 420 bar

42-High Pressure Setting B / 420 bar

32-Charge Pressure Setting / 32 bar

00-Control Orifice Options / inlet P n/o
